Coherent COMPex Pro 205 Excimer Laser



KrF, Wavelength: 248nm, Pulse duration:30ns

Rep rate: 50Hz, Max pulse energy: 700mJ

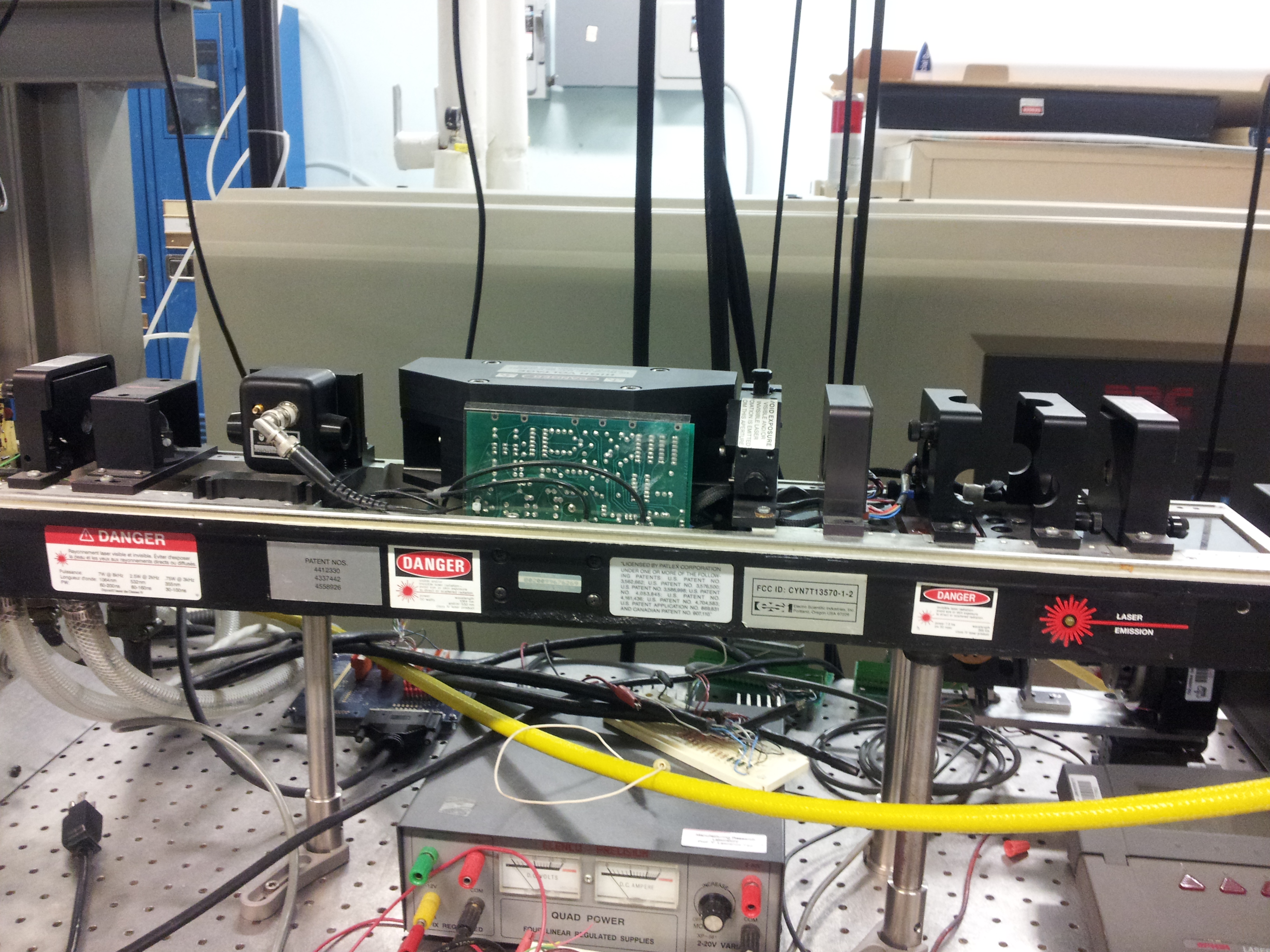

Left:  Laser cavity



Right:  Beam delivery system sync with 2-D motion stage. Homogenization and mask-projection system















SPI redEnergy G4 Fiber Laser



Wavelength:1064nm, Pulse duration: 41ns

Max CW Power: 20W, Max Pulse Energy: 0.60mJ



Left: Laser cavity



Right: Fiber Delivery System

Objective lens processing, 2-D motion stage sync with laser











ESI Model 3572 Nd:YAG laser



Tunable wavelengths: 1064/355nm, Pulse duration: 50ns

Max rep rate: 1kHz, Q-switched

Max Power @ 1064nm CW 5.25W

Max Energy @ 355nm pulsed 0.42mJ



Left: Laser cavity



Right: Beam Delivery System:

Beam expander, Objective lens processing

2-D motion stage synced with laser













Spectra-Physics Hurricane System

Ti:Sapphire femtosecond laser



Wavelength: 800nm, Pulse duration:130fs

Rep rate: 1kHz, Max pulse energy: 0.5mJ



Left: Regenerative amplifier system



Right" Beam Delivery System, 40X objective lens processing

Videoing system for focus calibration







PRC SL-1500 CO2 Laser



Wavelength:10.6μm

Power: 3500W @ CW, 10kW @ Pulsed



Left: Laser cavity



Right: X-Y Linear Motion Table, Beam Delivery System

Lens protection gas

































Continuum NY61 Laser



Nd:YAG

Wavelength:  1064 nm
Max Rep Rate:  20 Hz
Pulse Duration:  17 ns
Max Pulse Energy:  320 mJ









GSI Lumonics JK-2000

 Nd:YAG Laser



Wavelength:1064nm, Max Power: 2kW

Operating mode: CW/chopped, Min beam diameter: 0.8mm



Left: Laser cavity



Right: Fiber beam delivery system

Synced with Staubli robotic arm









Staubli RX-130 Robot



6 DOF

Resolution: 0.1mm

Sync with JK-2000 Nd:YAG laser





Olympus BX-60

Optical Microscopy



Specs: Ref./Tran Mode

Max magnification: 100X

MPlan/UPlan/MplanAPo lens

Differential interference contrast(DIC)

Hamamatsu C8484-05G Digital Camera

Olympus DP10 Color Digital Camera







































ThermoImager TIM 160

Measuring ranges -20 - 100C, 0 - 250 C, 150 - 900 C

Optical resolution 160 x 120 pixels

Spectral range 7.6 - 13μ

Exchangeable lenses 23,48







TORMACH PCNC 1100

Personal CNC Mill



5140RPM 1.5HP R8 Spindle

sensorless vector control

exclusive foldback logic



Carbolite CTF-12/65/550

Tube Furnace



Max Temp: 1200˚C

Max rate: 5 ˚C/min

Vacuuming system













Additional equipment accessible in the Materials Research Science and Engineering Center (MRSEC):

Transmission Electron Microscope







Scintag X-Ray Diffractometer (XRD)





X-Ray Photoelectron Microscope (XPS)







Woollam Ellipsometer



Fourier Transform Infrared Spectroscope (FTIR)







Hitachi S-4700 SEM
